Description
This AHD TFT LCD 5inch Monitor can be connected with your video equipment like VCD, DVD, GPS, satellite receiver, etc.

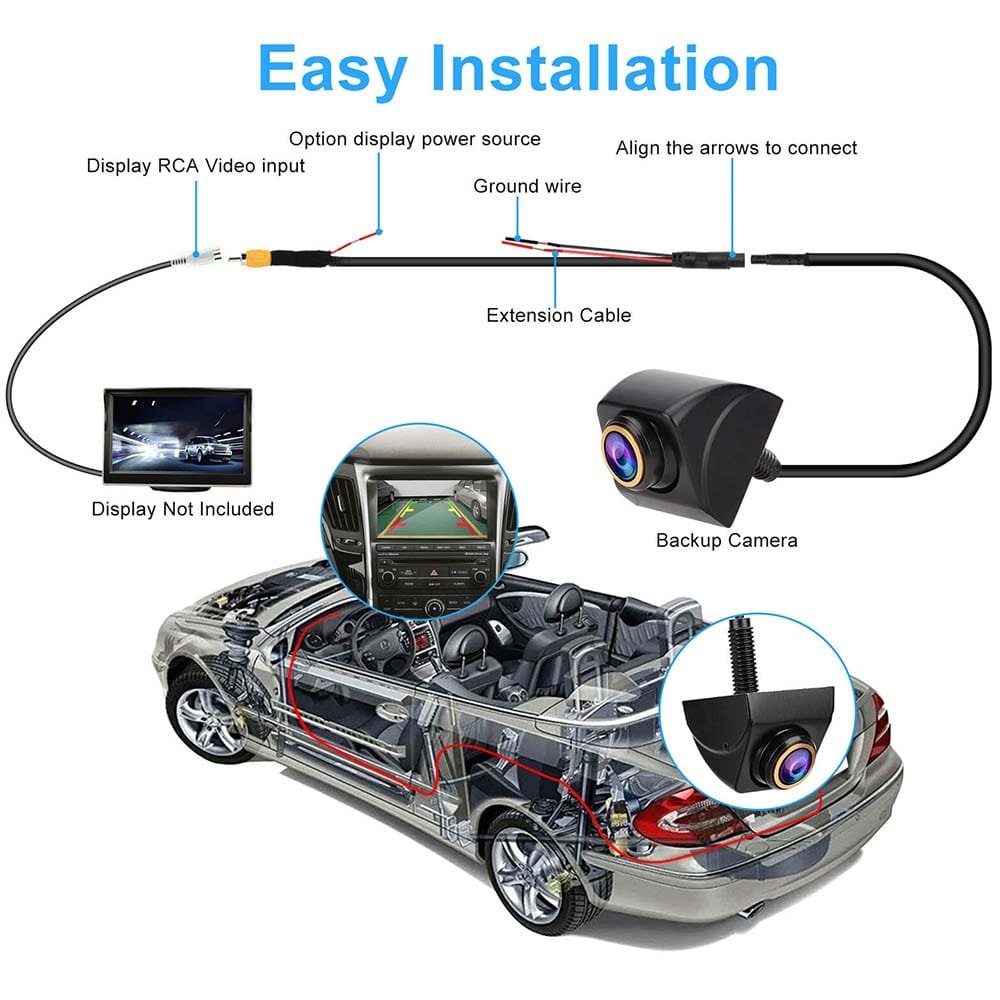

It is very easy to install. It is a key part of a rear view system that will definitely enhance your driving safety.
After installation, this monitor system will start up automatically when reversing.
Product Parameters:
Type: AHD Digital TFT LCD
Display Screen Size: 5 Inch
Resolution: 800*RGB*480
Video Signal: Compatible with both AHD and CVBS Video Signal
Contrast: 300:1
Power: About 3W
Power Supply: DC 12-30V
Brightness: 500CD/㎡
Video Format: PAL / NTSC (automatically switch)
Operation temperatures: -4℉~+140℉
Storage temperatures: -22℉~+176℉
Material: ABS Plastic
Package:
1 * 5 AHD 800×480 Car TFT LCD Monitor
1 * Cigarette Lighter
1 * Dashboard Mounting Bracket
1 * Windshield Suction Cup Mounting Bracket
1 * 5FT Power Cable
1 * User Manual
1 * RCA Video Coupler
All of our 4-pin cameras can’t be connected directly with any other monitors(no matter DVR or dash or whatever)without using our power cable.
Product Parameters:
Image Sensor: CCD AHD Chip
TV System: NTSC
Resolution: 1280*720 Pixels
Viewing Angle: 170 degrees
Signal to Noise Ratio: ≤48dB
Waterproof Grade: IP68
Power: DC 12-24V
Minimum Illumination: 0.01Lux / F1.5
Working Humidity: 80%RH
Operating Temperature: -22℉— +140℉
Storage Temperature: -40℉—+176℉
Package:
1 * HD 720P Backup Camera

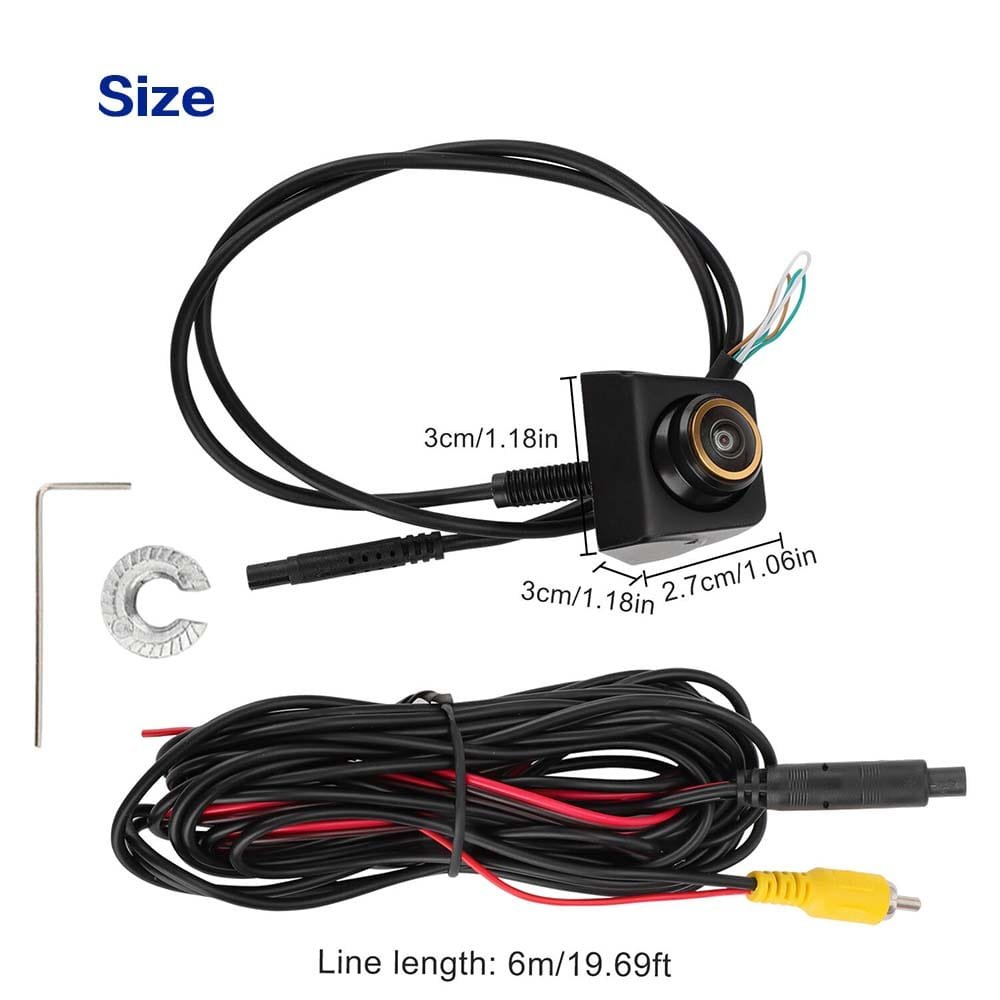

1 * 26FT Double Shielded Video Cable
1 * 5FT Power Cable
1 * Metal Holder set
1 * Accessory Bag for Metal Holder
1 * Silicone Holder
1 * Accessory Bag for Silicone Holder
1 * User Manual
1 * Adhesive Tape
1 * Removal Tool
5 * Zip Ties
5 * Wire Clamps
1 * Mini Screwdriver
1 * RCA Male to Male Coupler
1 * RCA Female to Female Coupler
1 * Electric Adhesive Tape
2 * T-tap Sets
